1. Household Air Conditioning
2. Commercial Air Conditioning
3. Industrial Air Conditioning
By applying advanced design and technology, it reduces energy consumption while supplying air. For example, the DC variable frequency motor can precisely control the speed and intelligently adjust the air volume according to the operation of the air conditioner and environmental changes, showing outstanding energy-saving effects.
It is mostly used in noise-sensitive spaces. Through multiple measures such as optimizing the structure, using low-noise bearings, and designing the fan blades, it reduces the vibration and noise generated during the motor's operation, creating a quiet environment.
Stable operation over a long period is crucial. It is made of high-quality materials and through strict manufacturing processes, with excellent insulation, heat dissipation, and corrosion resistance. It can adapt to high-temperature and high-humidity working conditions, having a long service life and low failure rate.
To meet diverse operation requirements, it can precisely control the speed by changing the power supply frequency and voltage, flexibly adjusting the air volume. According to the change of room temperature, it can intelligently adjust the air volume in the cooling and heating modes.
The motors of outdoor units have a high protection level, such as reaching IP54 or above. They can effectively resist the invasion of dust and rainwater, protect the internal components, and ensure normal operation in harsh outdoor environments.
Due to the compact space of the air conditioner, the motor is designed to be small in size and light in weight, which is convenient for the installation of both indoor and outdoor units. It also reduces the overall weight and volume of the air conditioner, making transportation and installation easier.
| Model | Input (w) | Output (w) | Voltage (v) | Current (A) | Frequency | Rotational Speed | Fan Size (mm) | Angle Of Fan | Grade Of Insulation | Packing Size | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | B | D | E | |||||||||||

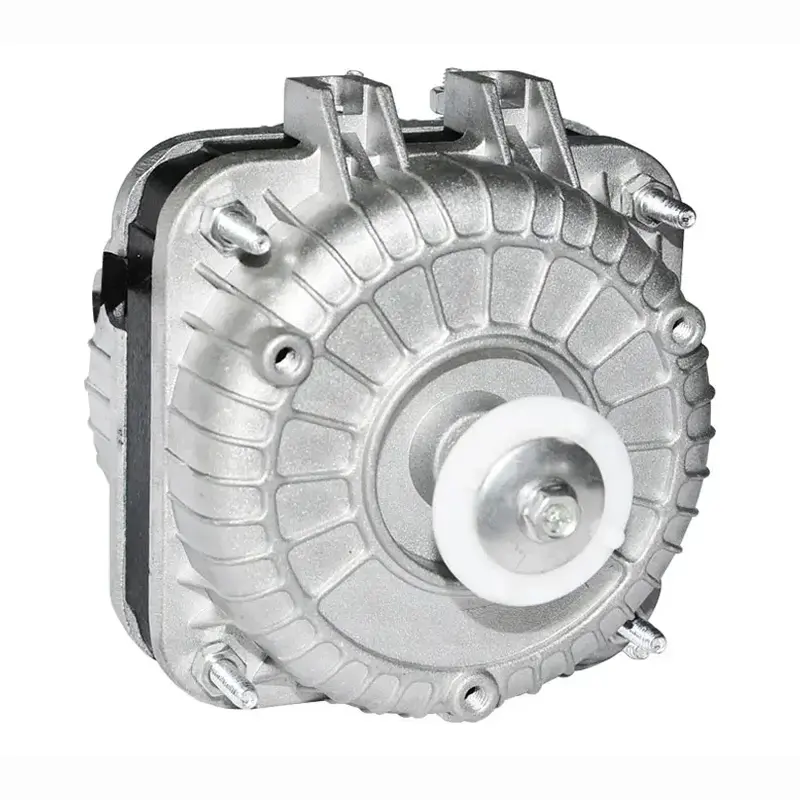

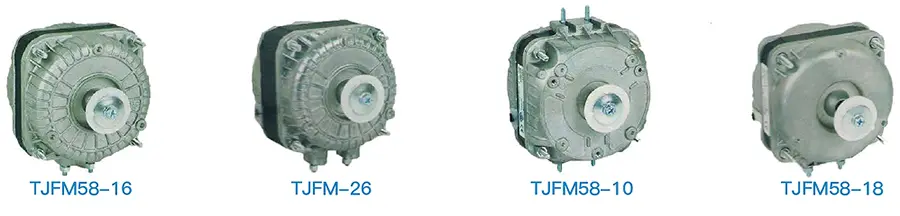

| JFM3-10 | 18 | 3 | 220/230 | 0.14 | 50/60 | 1300/1550 154 | 31° | B | 80 90 47 101 | |||||
| TJFM5-13 | 24 | 5 | 220/230 | 0.30 | 50/60 | 1300/1550 170/220 31° | /27° | B | 80 | 123/122 | 47 | 112/100 | ||
| TJFM7-13 | 31 | 7 | 220/230 | 0.22 | 50/60 | 1300/1550 200/230 31° | /19° | B | 87 | 122/134 | 47 | 112/100 | ||
| TJFM10-20 | 40 | 10 | 220/230 | 0.29 | 50/60 | 1300/1550 250 | 19° | B | 87 | 134 | 47 | 104 | ||
| TJFM16-25 | 50 | 16 | 220/230 | 0.36 | 50/60 | 1300/1550 300 | 19° | B | 97 | 160 | 55 | 115 | ||
| TJFM18-30 | 60 | 18 | 220/230 | 0.40 | 50/60 | 1300/1550 300 | 19° | B | 97 | 160 | 55 | 115 | ||
| TJFM25-40 | 84 | 25 | 220/230 | 0.60 | 50/60 | 1300/1550 300 | 23° | B | 107 | 160 | 60 | 137 | ||
| TJFM 34-45 | 106 | 34 | 220/230 | 0.75 | 50/60 | 1300/1550 300 | 27 | B | 129 | 160 | 60 | 137 | ||
| Model | Voltage(v) | Frequency(Hz) | Current(A) | Input(w) | Shaft Size (Inch) | Rotation |
|---|---|---|---|---|---|---|

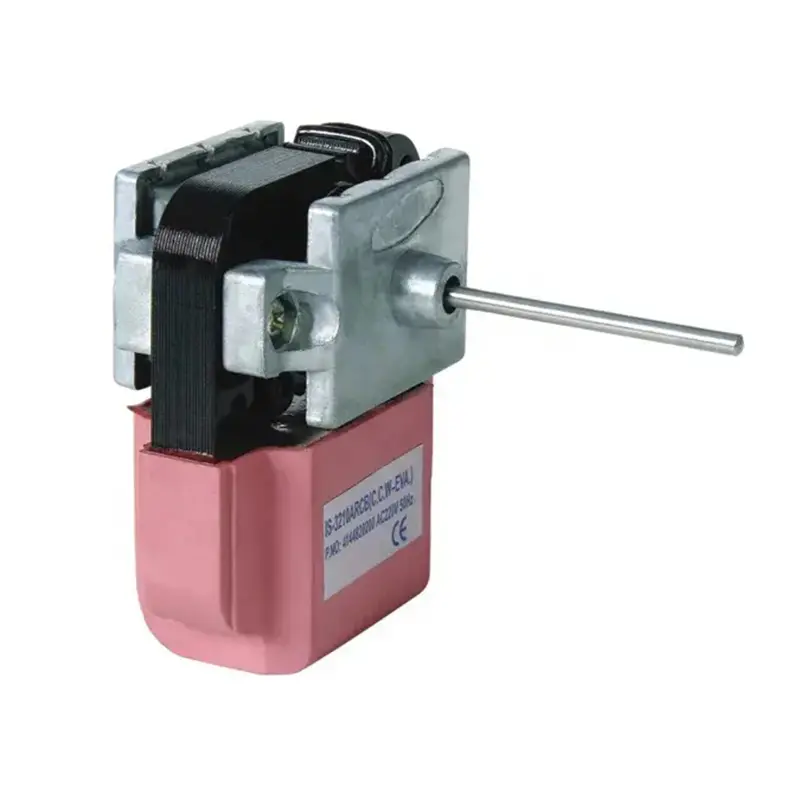

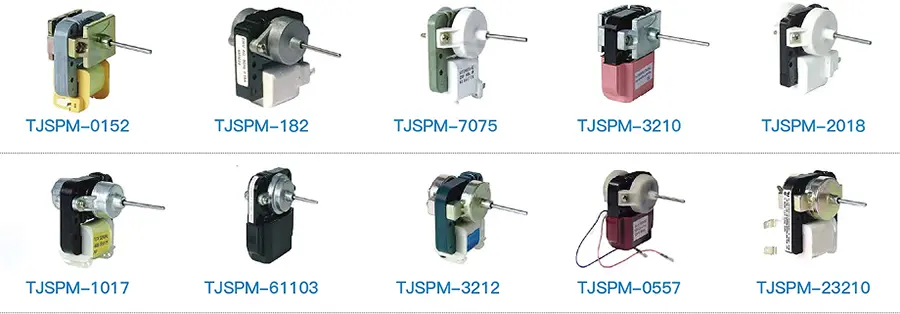

| TJSPM-10 | 220 | 50/60 | 0.12 | 13 | 1/8“*1” | CW |
| TJSPM-11 | 220 | 50/60 | 0.085 | 8 | 一 | CCW |
| TJSPM-12 | 220 | 50/60 | 0.18 | 15 | 3/16"/3/16" | CW |
| TJSPM-13 | 220 | 50/60 | 0.065 | 7 | 1/8"*1-5/16" | Cw/CCW |
| TJSPM-14 | 220 | 50/60 | 0.32 | 20 | 3/16"*1-7/16" | Cw/CCW |
| TJSPM-15 | 220 | 50 | 0.2 | 18 | 1/8”*2" | CW |
| TJSPM-16 | 220 | 50/60 | 0.06 | 6 | CW | |
| TJSPM-17 | 220 | 50/60 | 0.2 | 27 一 | CCW | |
| TJSPM-18 | 220 | 50 | 0.08 | 6.5 1/8"*1-5/16" | CW/CCW | |
These motors are widely used in Household Air Conditioning, Commercial Air Conditioning, and Industrial Air Conditioning systems.
By applying advanced design and technology, such as DC variable frequency motors, they can precisely control the speed and intelligently adjust the air volume based on the air conditioner's operation and environmental changes, resulting in outstanding energy-saving effects.
The AC Refrigerator Motor operates at a voltage of 220V or 110V, and a frequency of 50Hz or 60Hz, with a rotational speed around 1400 - 2800 revolutions per minute.
Yes. The motors designed for outdoor units feature a high protection level of IP54 or above, which effectively resists dust and rainwater, protecting the internal components and ensuring normal operation in harsh outdoor conditions.
Noise reduction is achieved through multiple measures, including optimized structures, the use of low-noise bearings, and specially designed fan blades, which minimize vibration and operational noise.
Most models, such as the AC refrigerator series, are designed with a Grade B insulation standard, which ensures high safety, thermal protection, and stability under demanding operations.
