China High Efficiency Wire Tube Condenser - China Suppliers & Factory for Corrosion Resistant Heat Dissipation Supplier, Manufacturer
Discover our high-efficiency heat dissipation solutions, designed for superior performance and energy savings. As a leading factory in China, we specialize in producing top-quality rolling welded steel tubes ranging from Φ4.76 to Φ8×0.7Our low carbon steel wire is available in sizes from Φ1.2 to Φ1.6mm, ensuring durability and strength. The robust brackets are made from SPCC steel plates with thicknesses ranging from T=0.6 to 2.0mm, while our steel plates come in thicknesses of T=0.6 to 0.8mm. Trust our suppliers to provide you with reliable and corrosion-resistant products that meet your industrial needs.

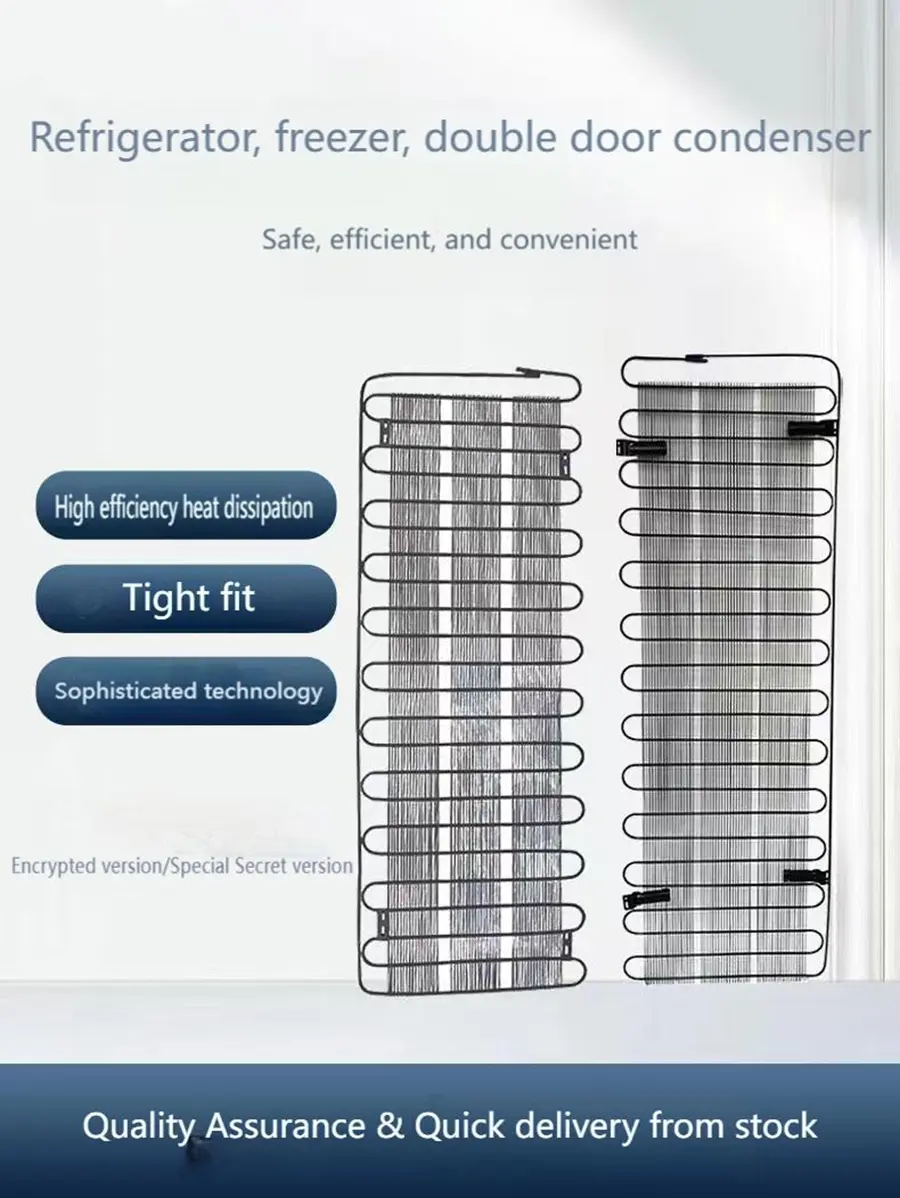

Designed for refrigerators, freezers and commercial refrigeration equipment, high-strength steel condensers maintain excellent heat dissipation and corrosion resistance under extreme conditions through optimized wire and tube structure and material technology, and are cost-effective alternatives to traditional copper tube condensers.
Main function

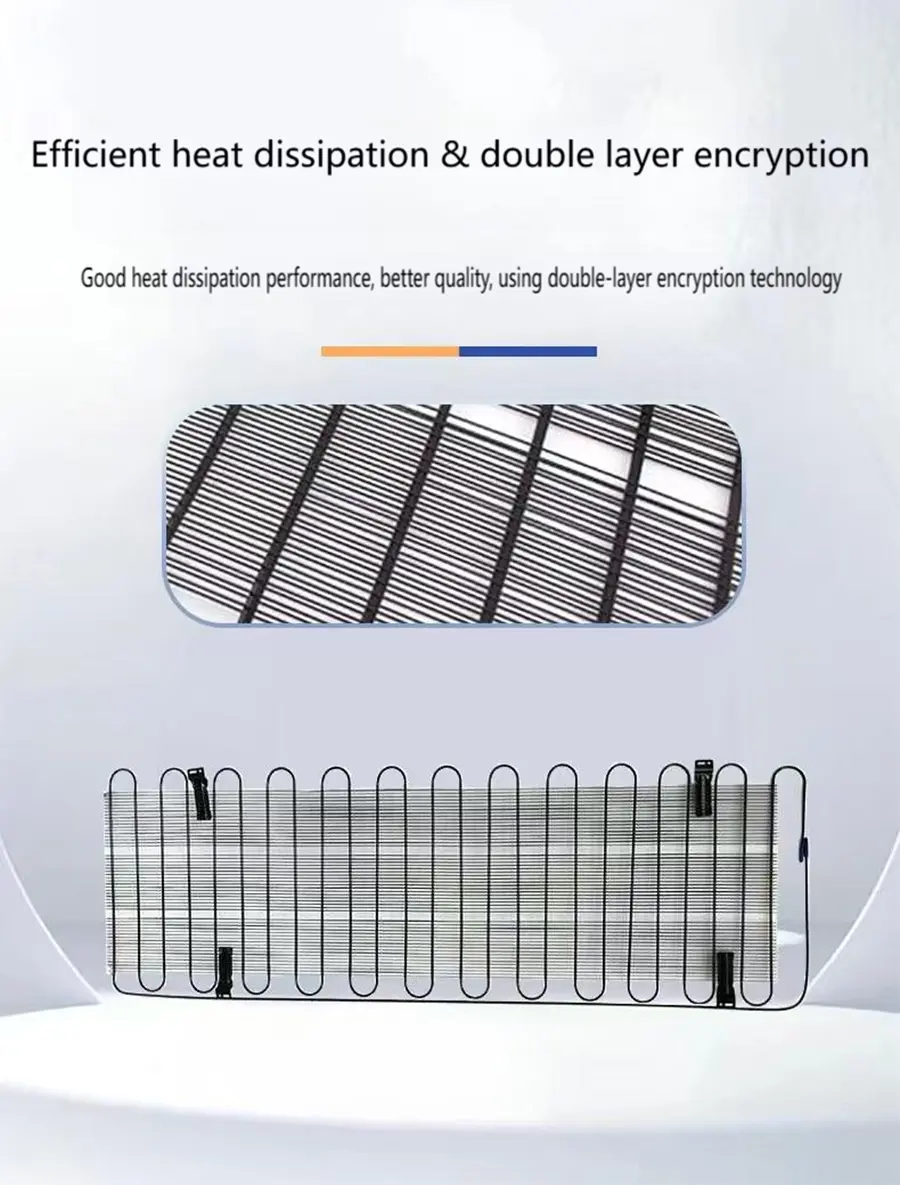

Super heat dissipation - Optimized fin structure, heat dissipation efficiency is 30% higher than ordinary condenser.
Anti-corrosion design - the product uses electrophoretic paint, surface anti-oxidation treatment, extended life by 50%.
Energy saving - Reduce the compressor work load, save 15%-20% power consumption.
Compatible with various refrigerant systems, such as R134a, R404a, and R22 out of the box - standardized interface design for easy maintenance and replacement.
High Impact Resistance - The combination of steel wires and coils forms a rigid structure that is less prone to deformation caused by vibration or external forces, making it ideal for the harsh environments of commercial or industrial refrigeration equipment.

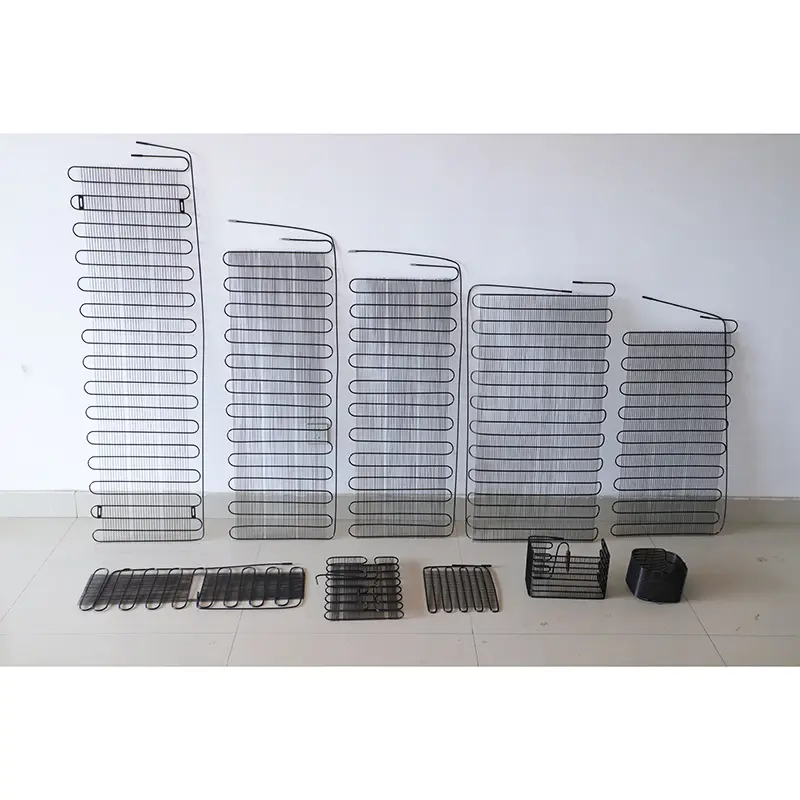

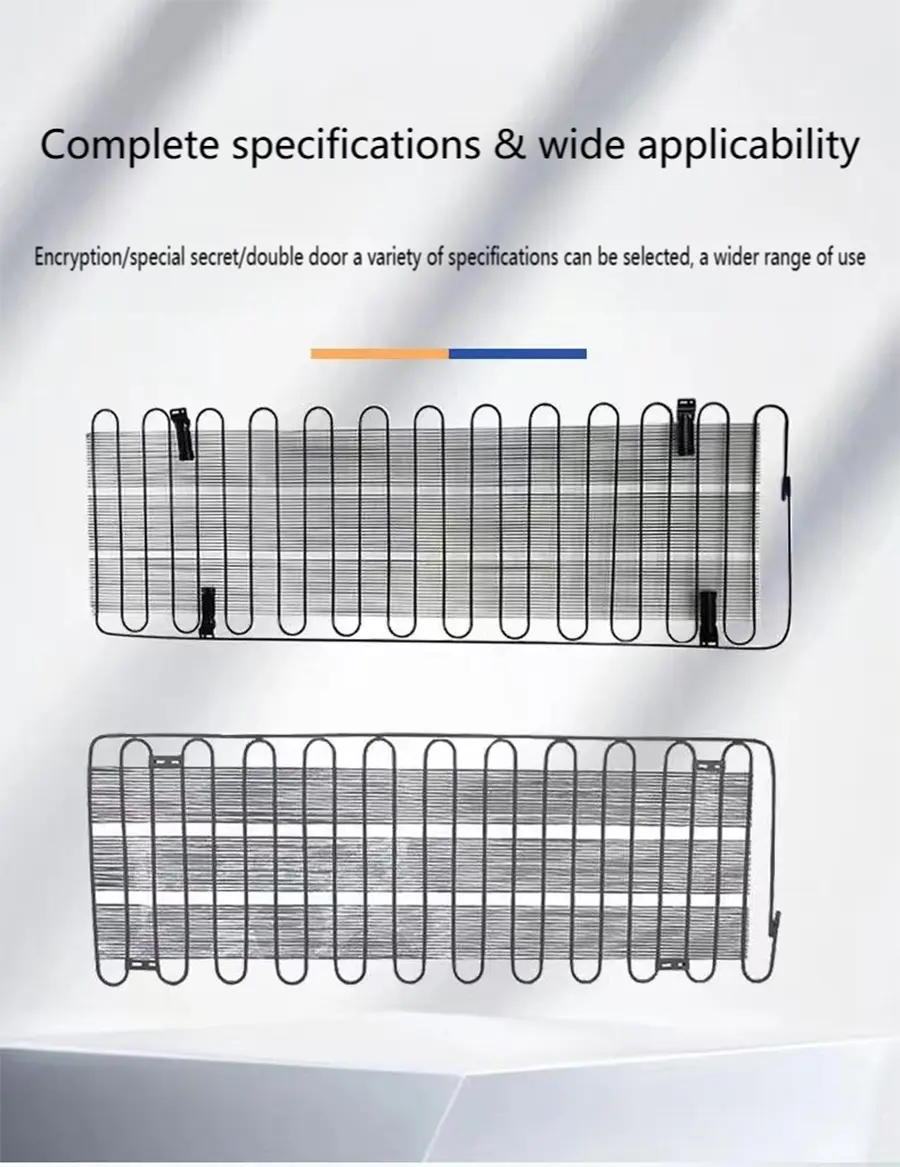

Structure

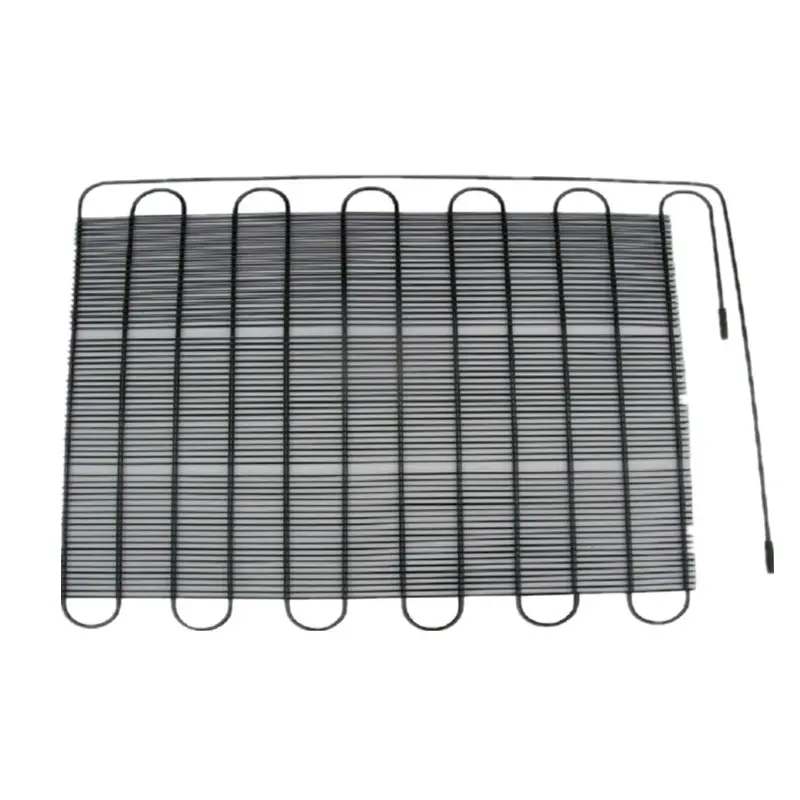

Flat type of wire on tube condenser used at the back.

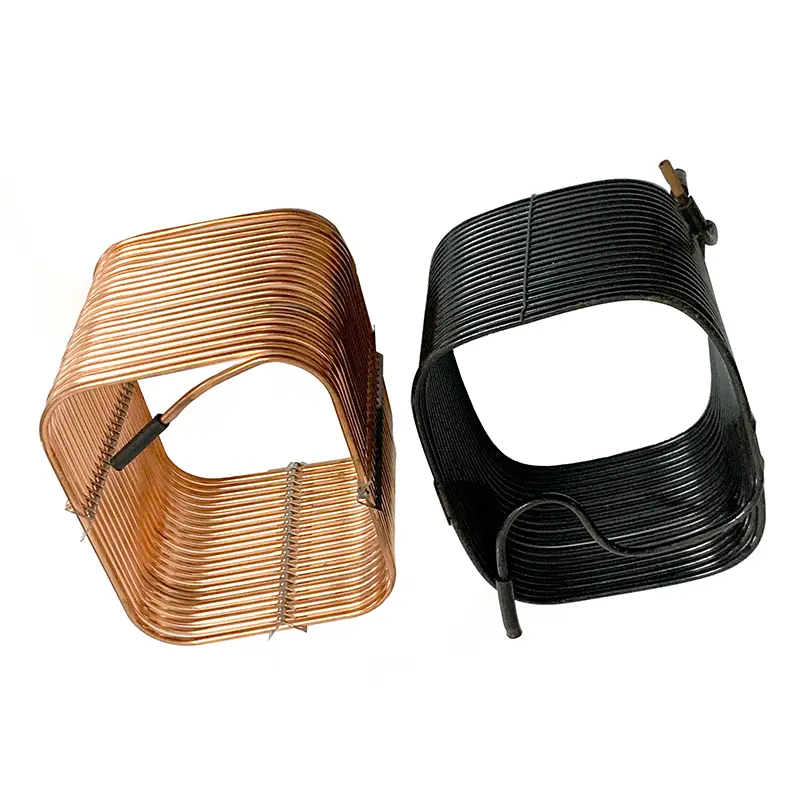

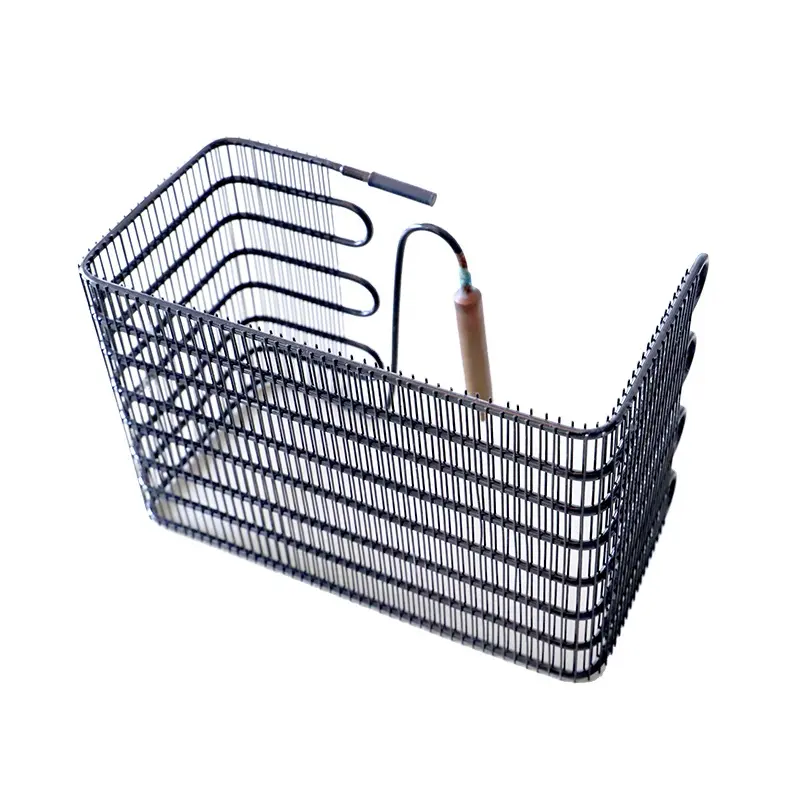

Bended or spiral type of wire on tube condenser used at the bottom.
Wrapped type of tube embed on plate.
Application scenario
Household refrigerator/freezer condensation system replacement.
Commercial cold storage unit maintenance and upgrading.
The cooling module of the external air conditioner is rebuilt.
Technical parameter
R134A Cooling system Tube Inside standard
Residual moisture ≤ 5mg/100cm³
Residual impurity ≤ 10mg/100cm³
Residual mineral oil ≤ 100mg/100cm³.
Residual chlorine ≤ 5Mo ppm.
Residual paraffin ≤ 3mg/m².
Biggest single impurity ≤ 0.5mm
Product details

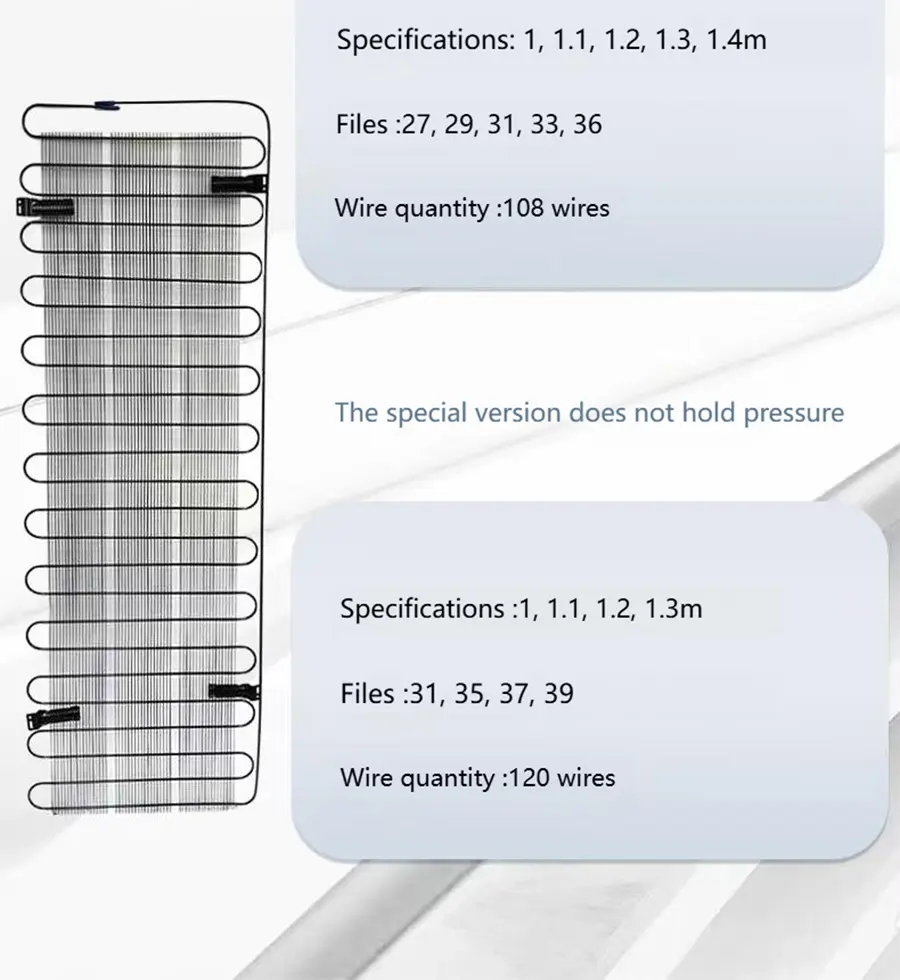

Wire pitch: ≥5mm, We can produce according to the drawing or sample supplied by clients, also can help the client design and produce different condenser used in refrigerator and freezer.

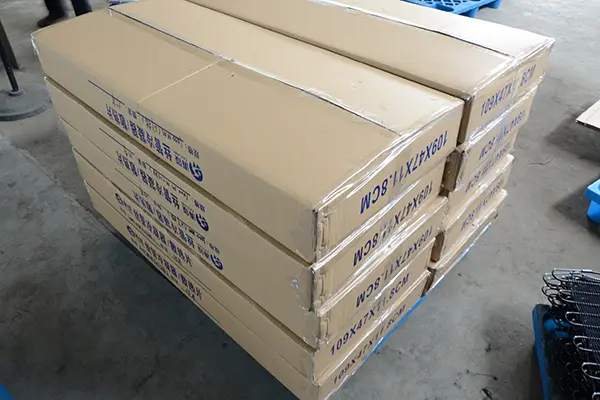

Packing and delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Certificates
Frequently Asked Questions
What systems are these steel wire-on-tube condensers compatible with?
These condensers are designed to be highly compatible with various refrigerant systems, including R134a, R404a, and R22, making them suitable for refrigerators, freezers, and commercial refrigeration units.
How much does this condenser improve heat dissipation compared to standard options?
Thanks to its optimized wire and tube structural design, the heat dissipation efficiency is increased by 30% compared to standard, non-optimized condensers.
What anti-corrosion treatments are applied to ensure a long lifespan?
The product features electrophoretic paint and comprehensive anti-oxidation surface treatments, which extend its overall operational lifespan by 50% under extreme conditions.
Can you customize the wire pitch and overall design?
Yes, we can produce condensers according to drawings or samples supplied by clients. We can also assist in designing custom condenser configurations for specific refrigeration equipment.
What are the internal cleanliness standards for the condenser tubes?
Our tubes adhere strictly to R134a cooling system standards: residual moisture ≤ 5mg/100cm³, residual impurities ≤ 10mg/100cm³, residual mineral oil ≤ 100mg/100cm³, and residual paraffin ≤ 3mg/m².
How is the product packaged to prevent damage during shipping?
We provide professional, environmentally friendly, and robust packaging designed to protect the structural integrity of the wire and tube assembly during transport.
