Construction & Materials

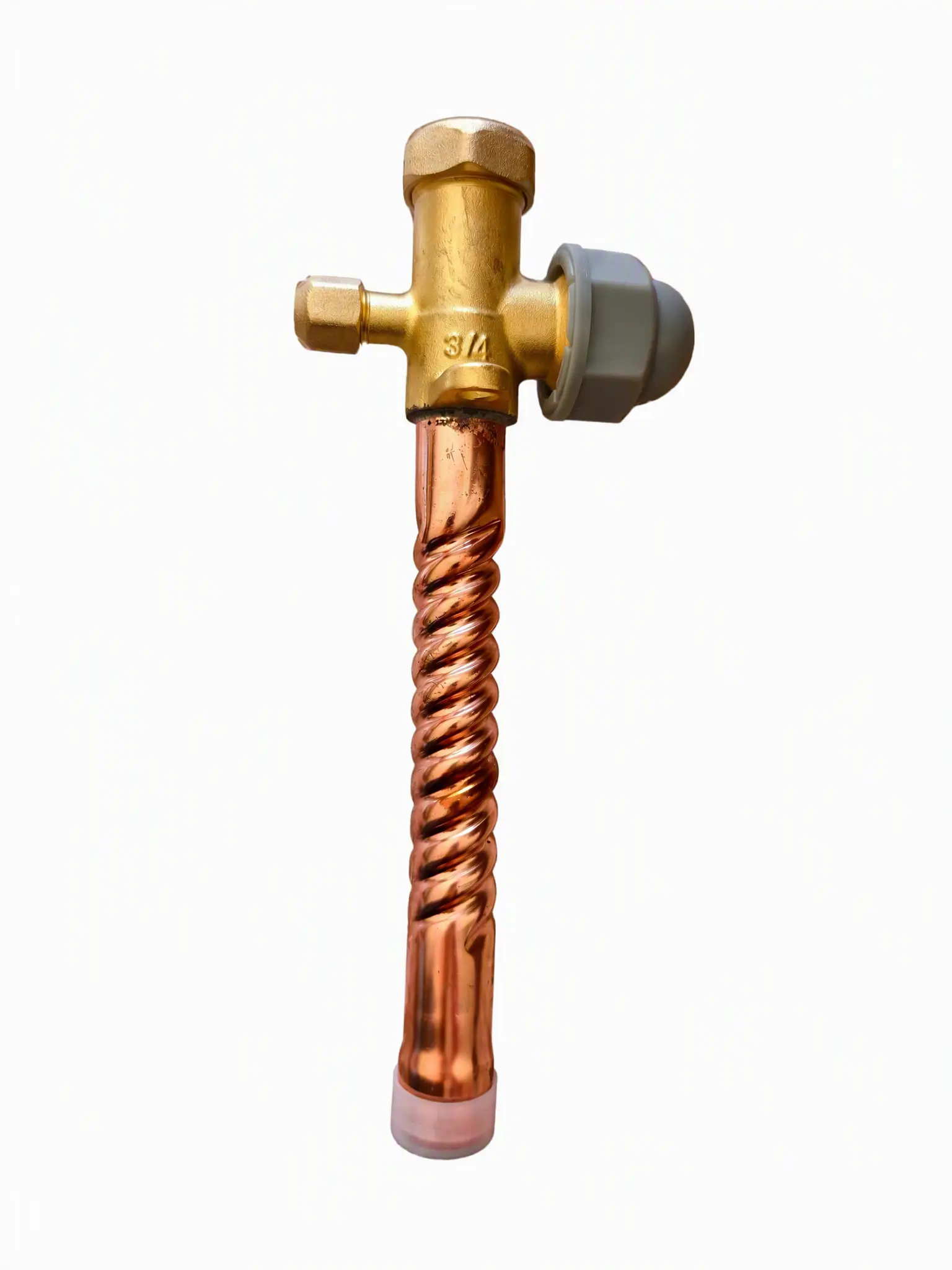

Each valve is manufactured from high-grade brass forging with drawn copper tube tails, combining corrosion resistance with the mechanical strength needed for high-pressure refrigerant systems. The valve body carries standard flare (SAE) threads — from 7/16"-20UNF up to 1-7/16"-12UNF — so it mates directly with common refrigeration copper tubes. Three-way versions add an integrated service port, allowing gauge manifold connection for vacuuming and refrigerant charging in one compact unit.

Key Features

• Wide size range: 1/4", 3/8", 1/2", 5/8", 3/4", 7/8" and 1-1/8" models cover split systems from 1HP to 15HP.
• Refrigerant compatibility: Fully compatible with R22 and R410A, as well as most CFC, HCFC and HFC refrigerants.
• Two-way & three-way options: Choose the standard shut-off version or the service-port version for fast evacuation and charging.
• Reliable sealing: Precision lapped valve core and O-ring / seal assembly deliver leak-free performance over the whole operating range.
• Easy identification: Clear model marking and flow direction indicator on the body prevent incorrect installation.
• Ready for brazing: Copper tails accept standard silver brazing into the system piping, while the hexagonal body allows secure wrench tightening.

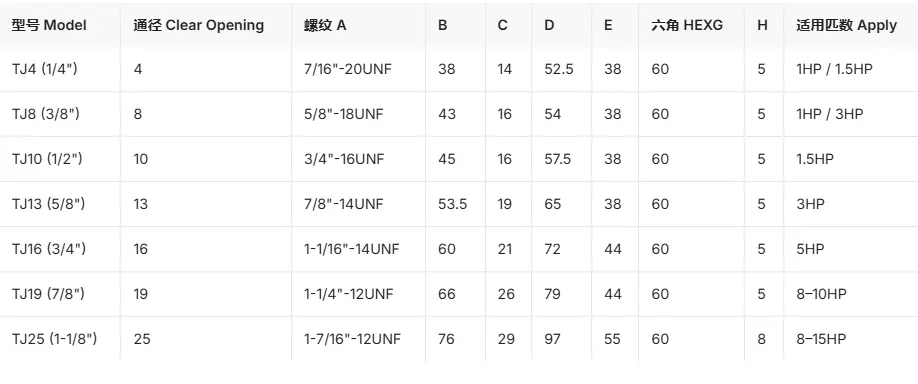

Parameter

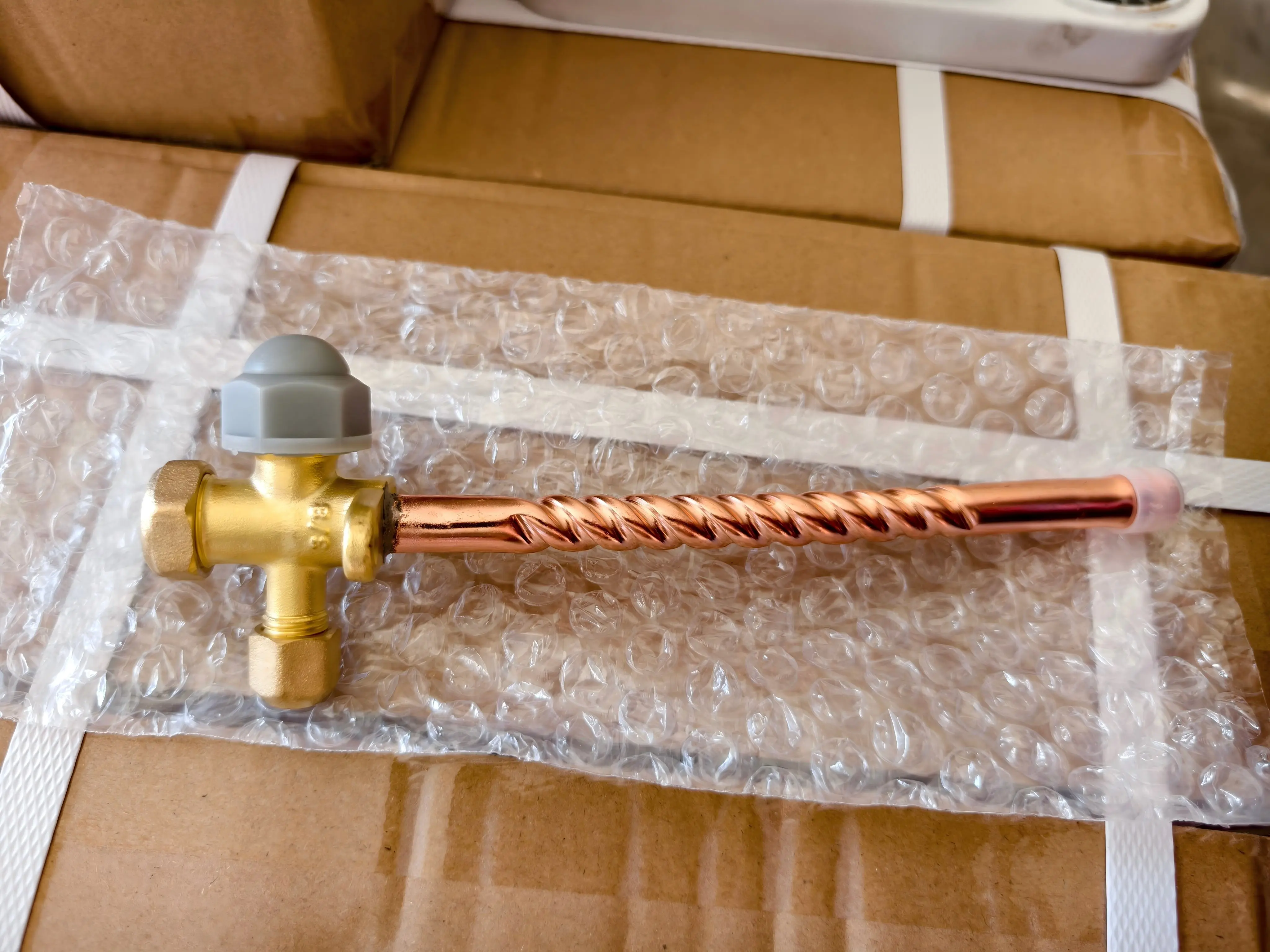

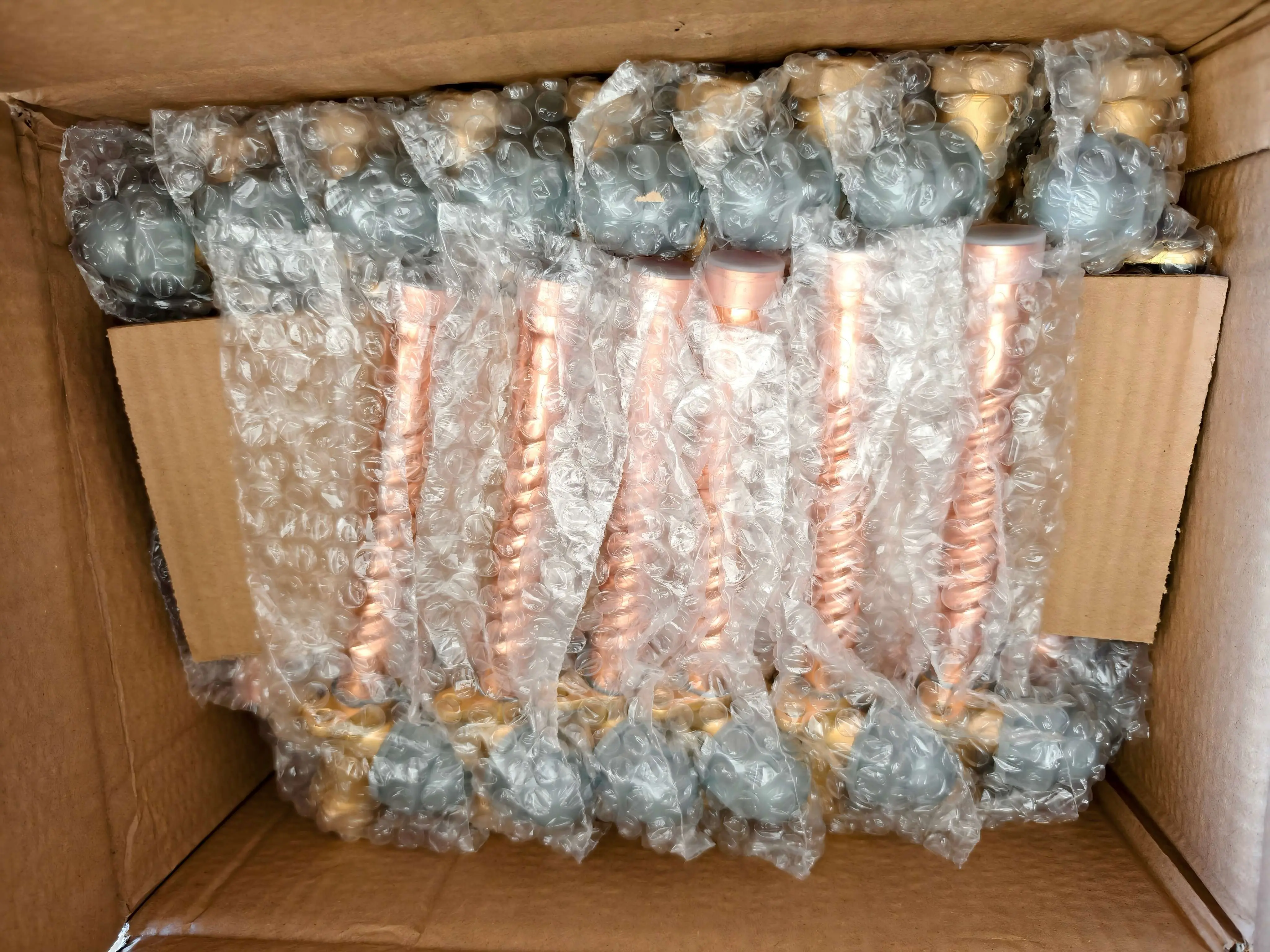

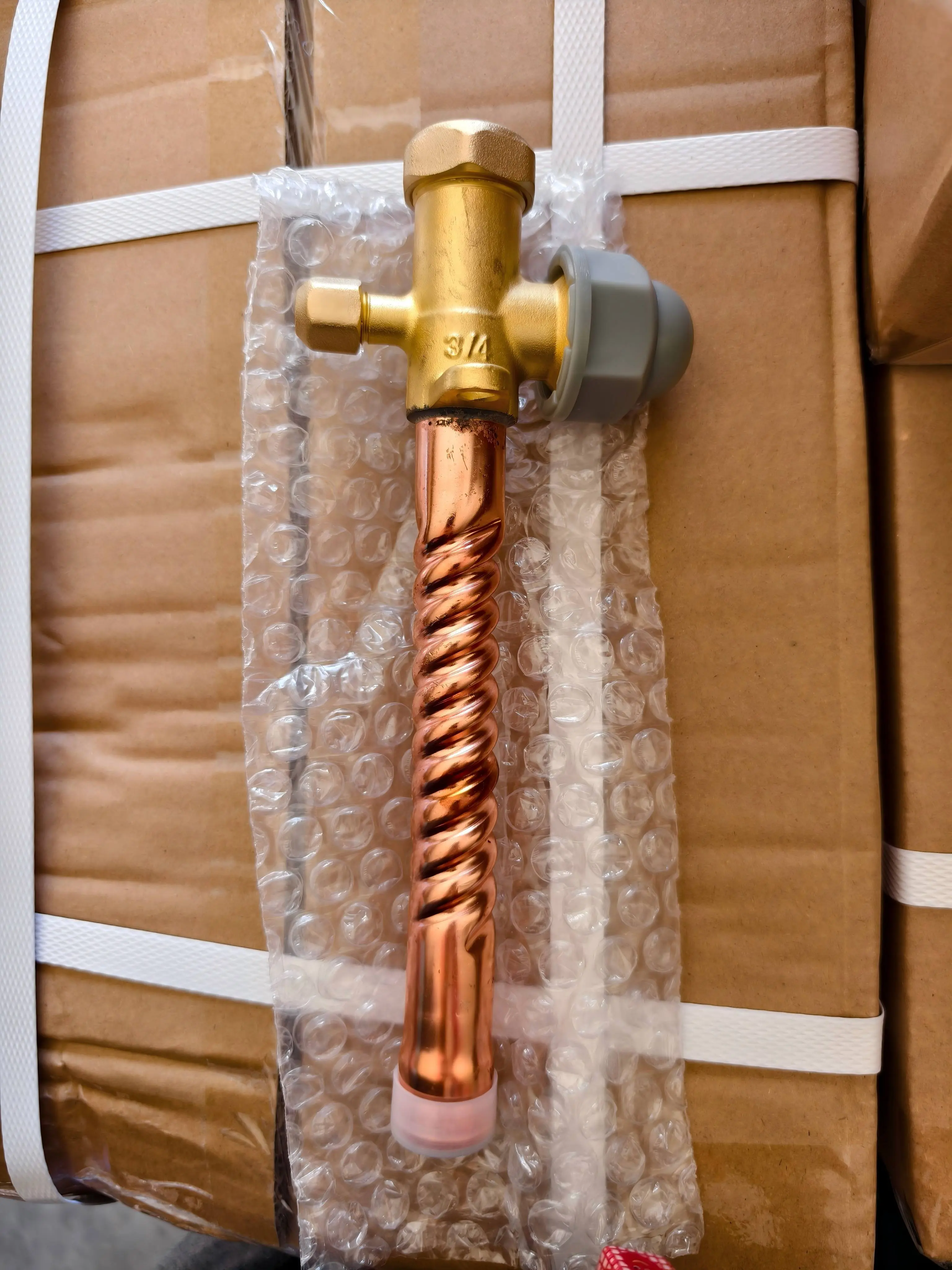

Packing and delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Certificates
