Specifications
| Item |
Value |
| Name |
Copper Filter Drier |
| Weight (kg) |
0.038 |
| Warranty |
3 years |
| Application |
Refrigeration Parts |
| Video Outgoing-Inspection |
Provided |
| Machinery Test Report |
Provided |
| Place of Origin |
Zhejiang, China |
| Material |
Copper, Brass |
Features
Copper filter driers are designed to absorb moisture and acid, and to filter out impurities. Normally installed as a component and replaced as a repair part for both domestic and commercial refrigerators and freezers.
1. Structure and Material
Shell: High purity copper pipe (rust resistant, high pressure resistant)

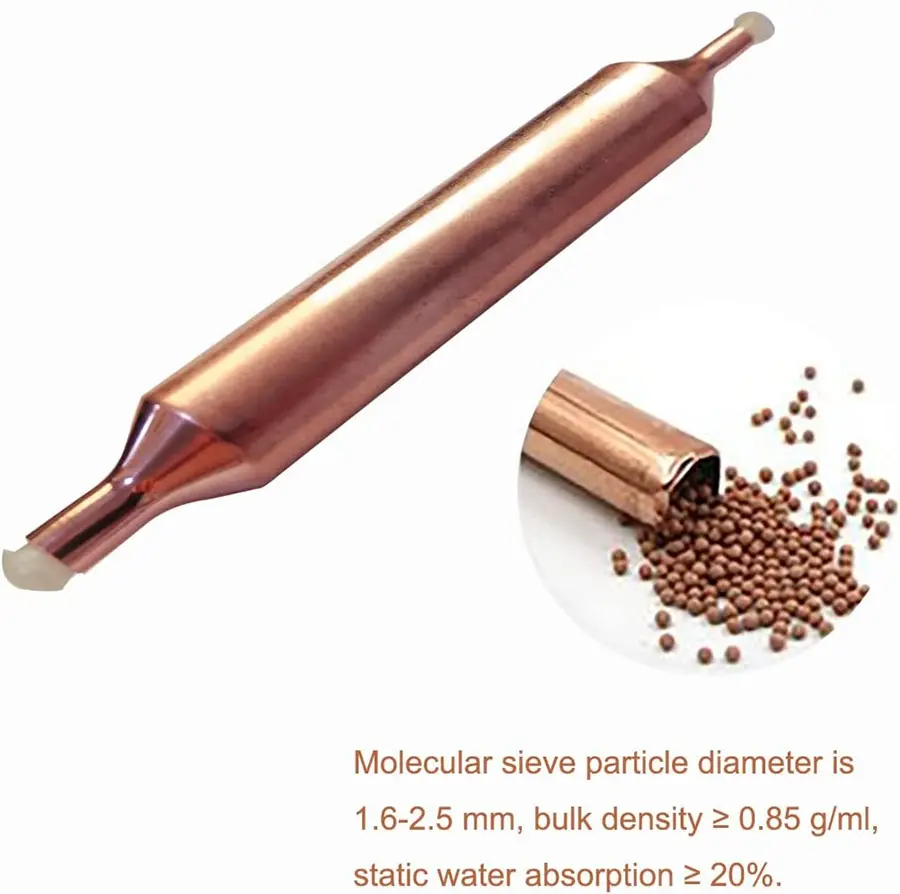

Inner core: 3A molecular sieve (water absorption ≥20%) + activated carbon layer
Sealing process: Argon arc welding to ensure no leakage
2. Core Strengths
Prolong equipment life: Reduce the corrosion of water and acidic substances on the compressor.
Fast cooling: Reduce system resistance and improve refrigerant cycle efficiency.
Widely used: Ideal for household refrigerators, commercial cold storage, and automotive air conditioning.
3. Application Scenarios
Refrigerator/freezer repair and replacement
Air conditioning system maintenance and upgrade
Industrial refrigeration equipment maintenance
Technical Details
- Copper filter drier (copper strainer) for refrigerators, freezers, air-conditioners, compressor units, and refrigeration units.
- Both ends capped with plastic caps, large or small (available in white, yellow, red, blue, green, and other colors).
- Zeolite weight options: 5g, 7g, 7.5g, 8g, 10g, 12g, 13g, 15g, 18g, 20g, 25g, 30g, 35g, 40g, 50g.
- Custom text can be printed directly on the body of the driers.
- Labels are available based on custom requirements.

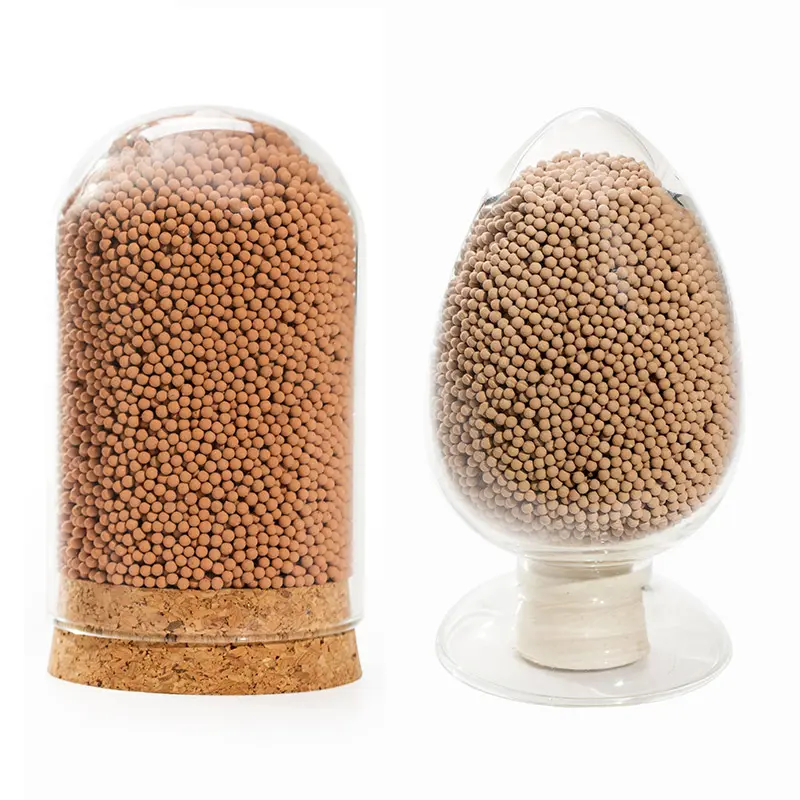

- Molecular sieves: XH-9.
- Stop points available on both the inlet and outlet, or on either single side.
- Suitable for R134a, R12, and universal types.
- Packing: Supplied in standard plastic bags or vacuum packaging, then packed into cartons or drums.

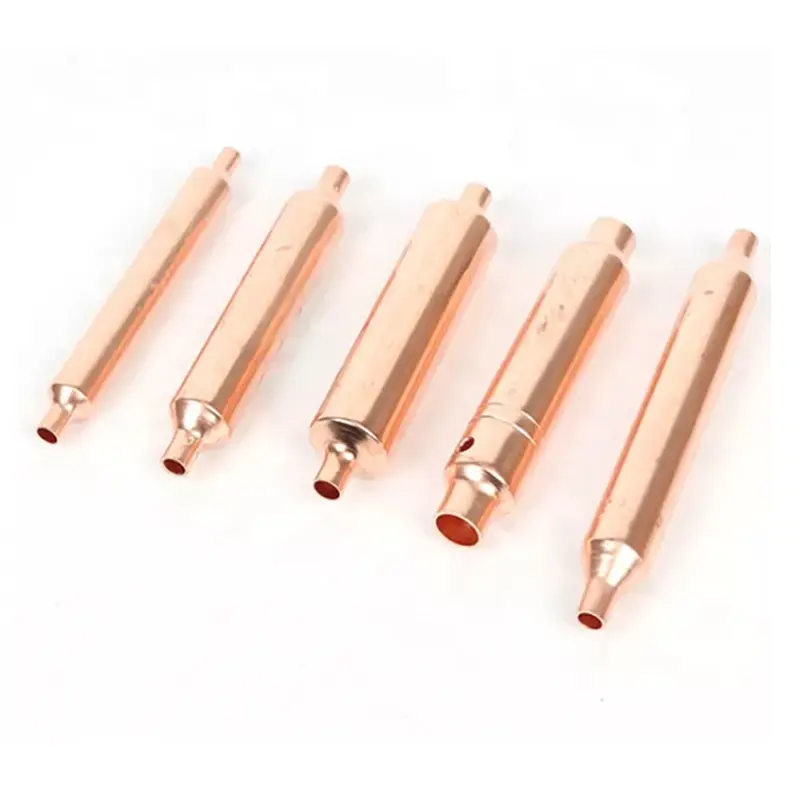

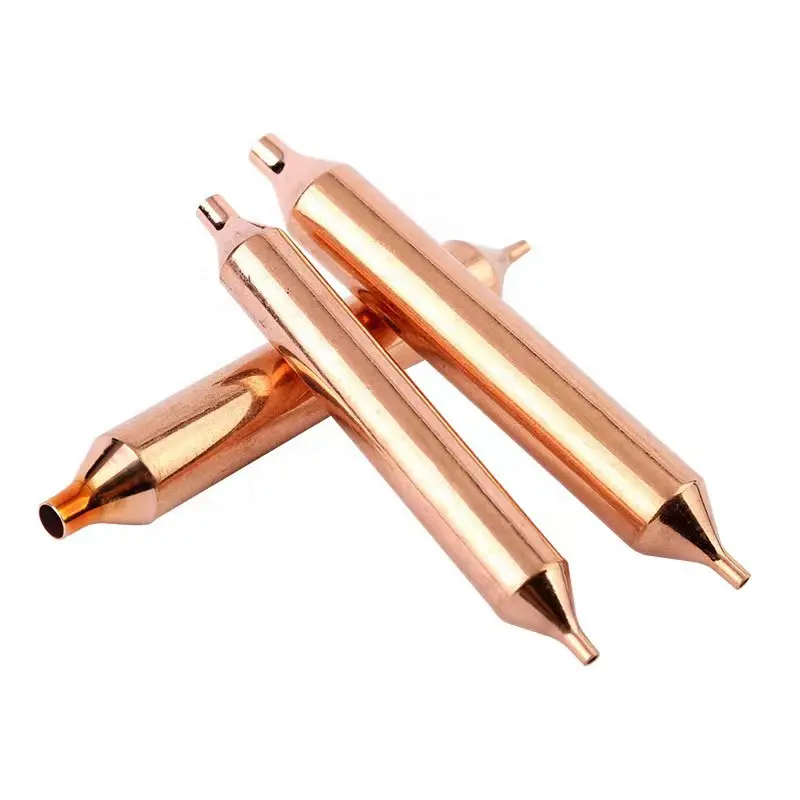

Product Display
Parameters
| Model |
Molecular Sieves (+5%, –0%) |
Body Diameter (+2) |
Total Length (±2) |
Inlet (Inner Dia) +0.1 |
Outlet (Outer Dia) +0.1 |
| TJA5 |
5 |
16 |
85 |
6.5mm |
2.5mm |
| TJA10 |
10 |
16 |
115 |
6.5mm |
2.5mm |
| TJA8 |
8 |
19 |
90 |
6.5mm |
3.2mm |
| TJA10 |
10 |
19 |
100 |
6.5mm |
3.2mm |
| TJA12 |
12 |
19 |
105 |
6.5mm |
2.5mm |
| TJA13 |
13 |
19 |
110 |
6.5mm |
2.5mm |
| TJA15 |
15 |
19 |
115 |
6.5mm |
2.5mm |
| TJA20 |
20 |
19 |
140 |
6.5mm |
2.5mm |
| TJA20 |
20 |
25 |
120 |
6.5mm |
6.5mm/3.2mm |
| TJA25 |
25 |
25 |
125 |
6.5mm |
6.5mm/3.2mm |
| TJA30 |
25 |
25 |
140 |
6.5mm |
6.5mm/3.2mm |
| TJA40 |
25 |
25 |
150 |
6.5mm |
6.5mm |
| TJA50 |
25 |
25 |
200 |
6.5mm |
- |
Note: All sizes listed are standard. Other custom sizes can be manufactured on request.
Packing & Delivery
To ensure your goods are delivered safely, we provide professional, environmentally friendly, convenient, and efficient packaging services.
Certificates
Why Choose Us
Frequently Asked Questions
What is the primary function of a copper filter drier?
The copper filter drier is designed to absorb moisture and acid in refrigeration systems while filtering out impurities to protect the compressor and enhance system efficiency.
What materials are used to manufacture the filter drier?
It is made of a high-purity copper and brass shell for corrosion resistance, and contains a 3A molecular sieve alongside an activated carbon layer to ensure high water absorption.
Are custom sizes and printing available?
Yes, customized sizes, special model dimensions, custom labels, and direct printing on the drier body are available on request to fit your requirements.
Which refrigerants are these filter driers compatible with?
These filter driers are designed as universal types and are fully compatible with R134a, R12, and other common refrigeration systems.
How are the items packaged for shipping?
The filter driers are packaged in standard plastic bags or vacuum bags, and then placed into heavy-duty cartons or drums to prevent damage during transit.
What is the warranty period for this copper filter drier?
We offer a 3-year warranty on this product, ensuring high-quality performance and long-lasting durability for your refrigeration systems.
